HONG KONG
KOWLOON BAY – LEGAN CENTRE
LOCATION
Located in the heart of Kowloon East Business District
10-minute walk from Kowloon Bay MTR Station
Access to 70+ commercial buildings within 2km radius
Extensive transport network to main business districts in Hong Kong
BUILDING SPECIFICATION
Purpose built six-storey en-bloc facility
128,000 SQFT purpose-built data center
14kPa of floor loading
Support 2,000+ standard DC racks
4 kVA per rack and upgradable to maximum 10kVA on request
Tier 3+ standard and upgradable to Tier 4
POWER
16MVA +16MVA utility power supply by separated CLP substations
Diesel generators in N+1 configuration
UPS design in N+1 or 2N configuration on request
On-site diesel tanks supporting 24 hour operation
COOLING
Available for individual direction cooling system or chilled water cooling system
CRAC in N+1 Configuration
Diverse distributed pipework
FIRE SUPPRESSION SYSTEM
Heat and smoke detectors
FM-200 fire suppression system
Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
SECURITY
Multi-layer check points
Door access control
Closed-circuit TV with recordings
24x7 On-site security with round-the-clock rounds
CONNECTIVITY
Diverse routes for carrier neutral connectivity
Access to multiple Tier 1 international carrier networks
Two diverse cable entry points
Connection linking up most of the top data centers in Hong Kong
Optimized internet solutions for local, China and oversea connectivity
COMPLIANCE
ISO 20000:2011 – I.T. Service Management System
ISO 14001:2004 – Environmental Management Systems
ISO 9001:2008 – Quality Management Systems
ISO/IEC 27001:2013 – Information Security Management Systems
LICENSE
External Telecommunications Services (ETS)
MONITORING
7x24 NOC monitoring all registered infrastructure devices
24 hours a day, 7 days a week
DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
iMon365 allowing different network components to be closely monitored

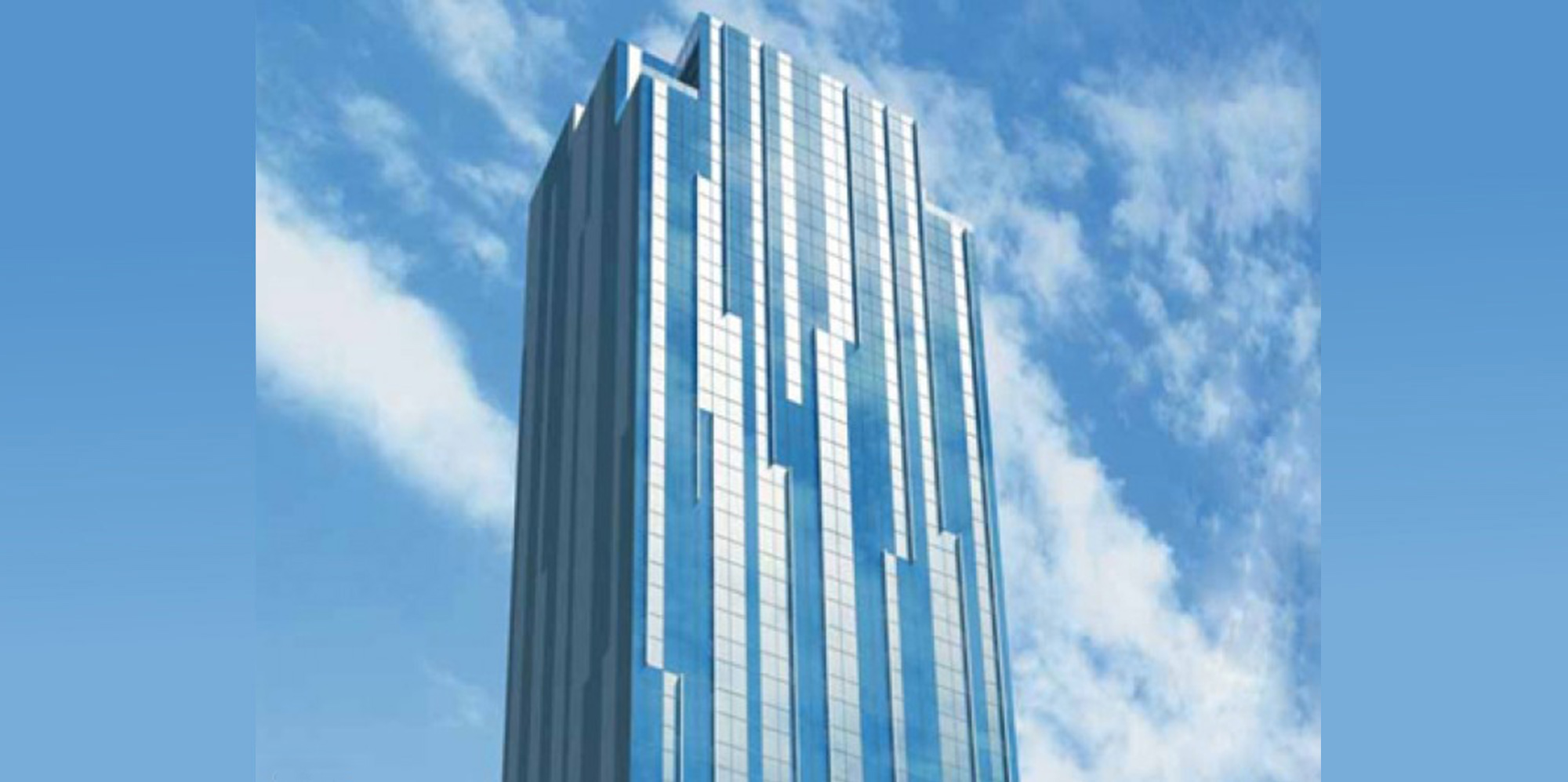

CHAI WAN – E-TRADE PLAZA
LOCATION
Located in Island Eastern Corridor Expressway
3-minute walk from Chai Wan MTR Station
BUILDING SPECIFICATION
30,000+ SQFT BCP & data center
Support 200+ shared and / or dedicated service desks plus100+ standard racks
Tier 3+ standard
POWER
Dual transformers & dual supply path to the data center
UPS in N+1 configuration
Genset in N+1 configuration
On-site diesel tanks supporting 8 hours
COOLING
Air-cooled CRAC unit in N+1 redundant configuration
Auto-restart capability after power failure
Energy saving facture in all CRAC units
FIRE SUPPRESSION SYSTEM
FM-200 fire suppression system
Smoke and thermal detectors
SECURITY
Keyless proximity card access system
CCTV monitoring and DVR recording of all main exits
24x7 on-site security guards
3-month CCTV recording retention
CONNECTIVITY
Carrier Neutral
Well connected with PCCW, HGC, Wharf T&T, Town gas and HK Broadband
Dedicated telecommunication risers
Building with dual lead-in
COMPLIANCE
ISO 20000:2011 – I.T. Service Management System
ISO 14001:2004 – Environmental Management Systems
ISO 9001:2008 – Quality Management Systems
ISO/IEC 27001:2013 – Information Security Management Systems
LICENSE
External Telecommunications Services (ETS)
MONITORING
7x24 NOC monitoring all registered infrastructure devices
24 hours a day, 7 days a week
DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
iMon365 allowing different network components to be closely monitored
CHINA

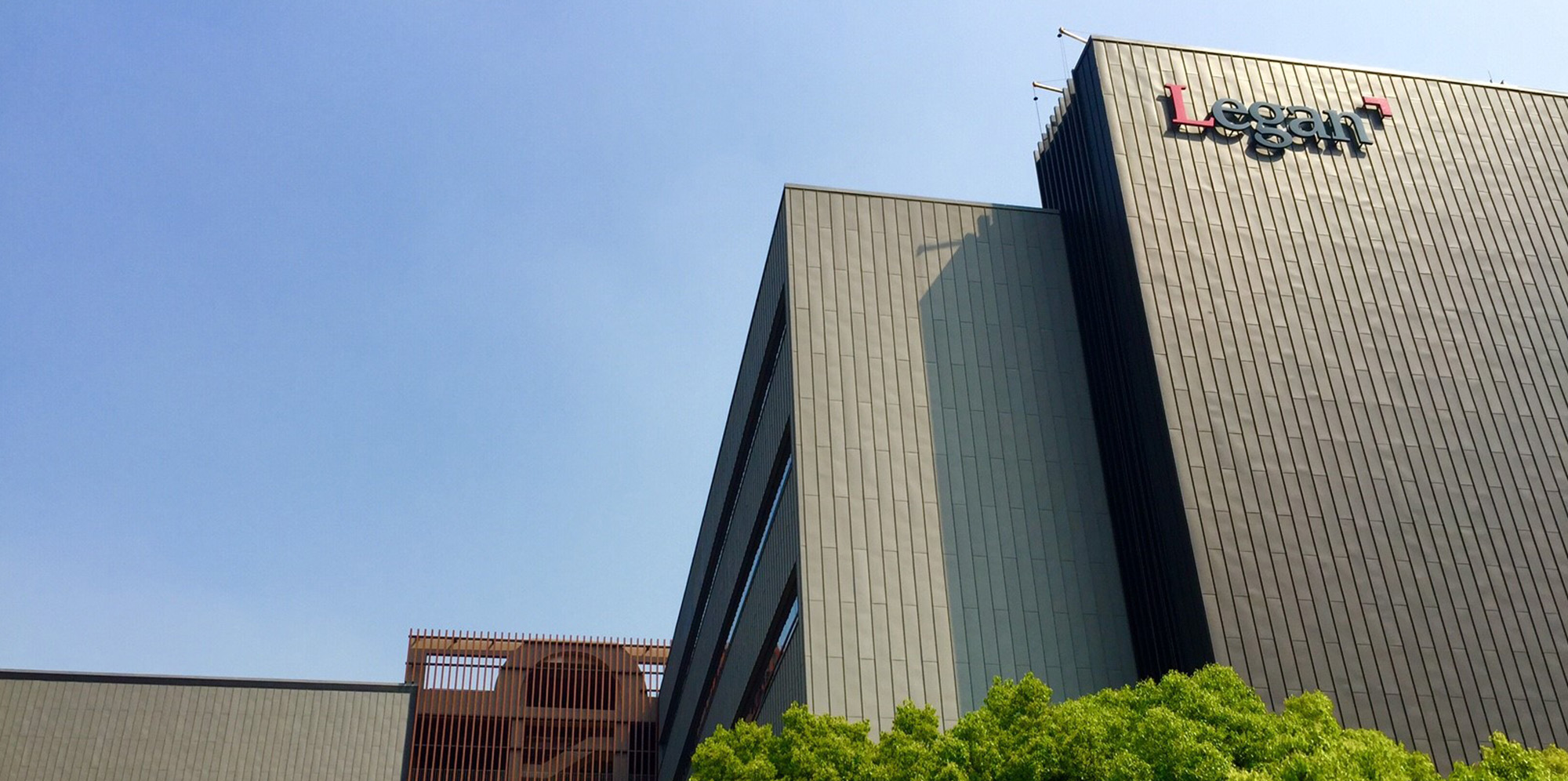

SHANGHAI – WaiGaoQiao DATA CENTER
-
LOCATION
Located in the northeast of Shanghai Pudong Waigaoqiao Free Trade Zone area
22.3 kilometers from Lujiazui financial center
36.2 kilometers from Pudong International Airport
44.3 kilometers from Hongqiao International Airport
Extensive transportation network connecting the FTZ data center to major urban areas and the surrounding cities
-
BUILDING SPECIFICATION
Purpose built six-storey en-bloc facility
10 kPa of floor loading
Own & operate 280,000 SQFT (26,000 SQM) data center
Support 6,000+ standard DC racks
Average 3.5kVA per rack and upgradable to maximum 8kVA on request
Tier 3+ standard and upgradable to Tier 4
-
POWER
20 MVA + 20 MVA utility power supply from dual city power stations
Diesel generators in N+1 configuration
UPS design in N+1 or 2N configuration on request
On-site fuel tank supporting 24 hours operation
PUE achieved up to 1.5
-
COOLING
Available for individual direction cooling system or chilled
Water cooling System
CRAC in N+1 configuration
Diverse distributed pipework
-
FIRE SUPPRESSION SYSTEM
Heat and smoke detectors
FM-200 fire suppression system
Inert gas suppression system
Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
-
SECURITY
Security booth with 24x7 guards stationed at main gate of DC campus
Registration Lobby protected with mantrap
Entrance of hosting area secured by electro-mechanical lock and controlled proximity reader
Enhanced with two-authentication (with operational bio-metric) for mission critical area or customers’private cage / suite
-
CONNECTIVITY
Carrier neutral
China Telecom and China Unicom Internet Access
Multi-homed BGP Internet Access congestion-free international gateway
Fiber network covering over 80% of commercial area in Shanghai
Connections linking up most of the top data centers in Shanghai
Various type of network services inclusive of SDH, MSTP, Ethernet and Wavelength
Optimized Internet Solution for local and overseas connectivity
-
COMPLIANCE
ISO 20000:2011 – I.T. Service Management System
ISO 14001:2004 – Environmental Management Systems
ISO 9001:2008 – Quality Management Systems
ISO/IEC 27001:2013 – Information Security Management Systems
-
LICENSE
Type II Telecom Infrastructure Services – Domestic Fixed
Network Data Transmission
Type I Telecom Value-Added Services – Domestic Internet VPN
Type I Telecom Value-Added Services – Internet Data Center
Type II Telecom Value-Added Services – Internet Access Service
International Value-Added Network Services (IVANS) include Internet Access Service
Class A of GB 50174-2008
Class 4 of Security Protection of Computer Information System (Physical Security) from The Ministry of Public Security of PRC
-
MONITORING
7x24 NOC monitoring all registered infrastructure devices 24 hours a day, 7 days a week
DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
iMon365 allowing different network components to be closely monitored

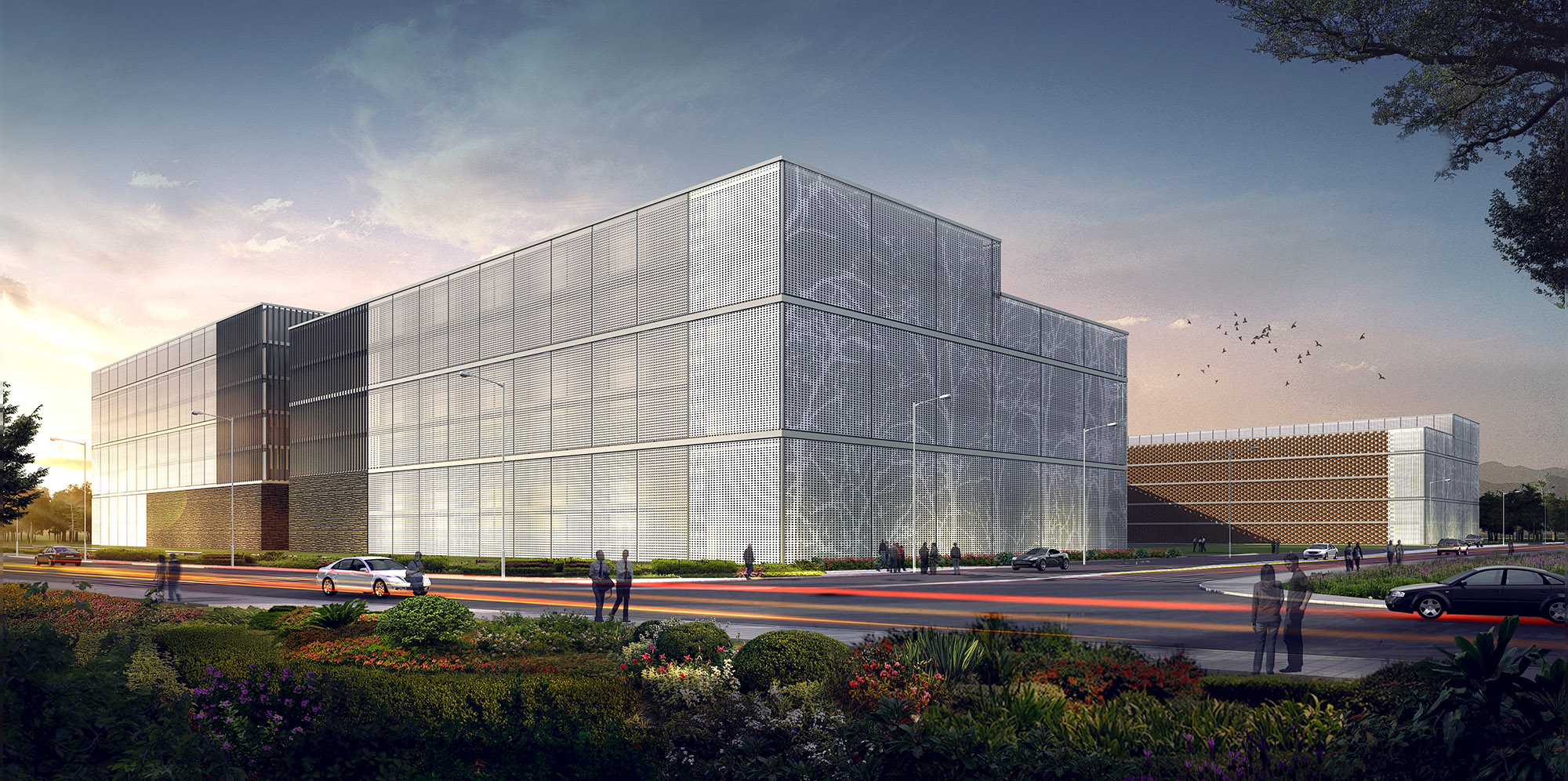

JIANGSU – NanTong DATA CENTER
-
LOCATION
Located in Northwestern side of Shanghai
Situated at Nantong International Data Center Zone
30 minutes travel time from Shanghai by High Speed Railway ready in 2018
Lay on “One Hour within-reach Economic Circle” with Shanghai-Hangzhou shuttle and Shanghai-Ningbo shuttle
100 Kilometers from Hongqiao Airport
150 Kilometers from Pudong
60% reduction in operation cost compared to Shanghai
-
BUILDING SPECIFICATION
DC campus comprised of 5 six-storey en-bloc buildings
Own & operate 1,200,000+ SQFT (120,000 SQM) purpose-built data center
Support 20,000+ standard DC racks
Tier 3+ standard and upgradable to Tier 4
-
POWER
Mains availability of the Data Center Campus Area covering 150 MVA
Dual city power delivered to campus
On-site fuel tank supporting 24 hour operation
PUE achieved up to 1.4
-
COOLING
Available for individual direction cooling system or chilled Water cooling System
Diverse Distributed pipework
CRAC in N+1 configuration
-
FIRE SUPPRESSION SYSTEM
Heat and smoke detectors
FM-200 fire suppression system
Inert gas suppression system
Pre-action dry pipe sprinkler or high sensitivity smoke detection early warning (HSSD) on request
-
SECURITY
Security booth with 24x7 guards stationed at main gate of DC campus
Registration Lobby protected with mantrap
Entrance of hosting area secured by electro-mechanical lock and controlled proximity reader
Enhanced with two-authentication (with operational bio-metric) for mission critical area or customers’ private cage / suite
-
CONNECTIVITY
Carrier neutral
China Telecom and China Unicom Internet Access
Multi-homed BGP Internet Access
Congestion-free international gateway
Various type of network services inclusive of SDH, MSTP, Ethernet and Wavelength
Optimized Internet Solution for local and overseas connectivity
Direct Access to Shanghai’s Internet Gateway with dark fiber with bandwidth up to 3,000GB
-
COMPLIANCE
ISO 20000:2011 – I.T. Service Management System
ISO 14001:2004 – Environmental Management Systems
ISO 9001:2008 – Quality Management Systems
ISO/IEC 27001:2013 – Information Security Management Systems
-
LICENSE
Type II Telecom Infrastructure Services – Domestic Fixed Network Data Transmission
Type I Telecom Value-Added Services – Domestic Internet VPN
Type I Telecom Value-Added Services – Internet Data Center
Type II Telecom Value-Added Services – Internet Access Service
International Value-Added Network Services (IVANS) (include Internet Access Service)
-
MONITORING
7x24 NOC monitoring all registered infrastructure devices
24 hours a day, 7 days a week
DCIM solutions monitoring, managing and maintaining the availabilityof data centers’ physical facilities
iMon365 allowing different network components to be closely monitored
KEY BENEFITS
KEY BENEFITS
Fiber network outreached to over 90% of datacenters in Greater China, provisioning service within our footprint will only take within a week
Carrier-neutral network connectivity for providing the best connectivity to enterprise

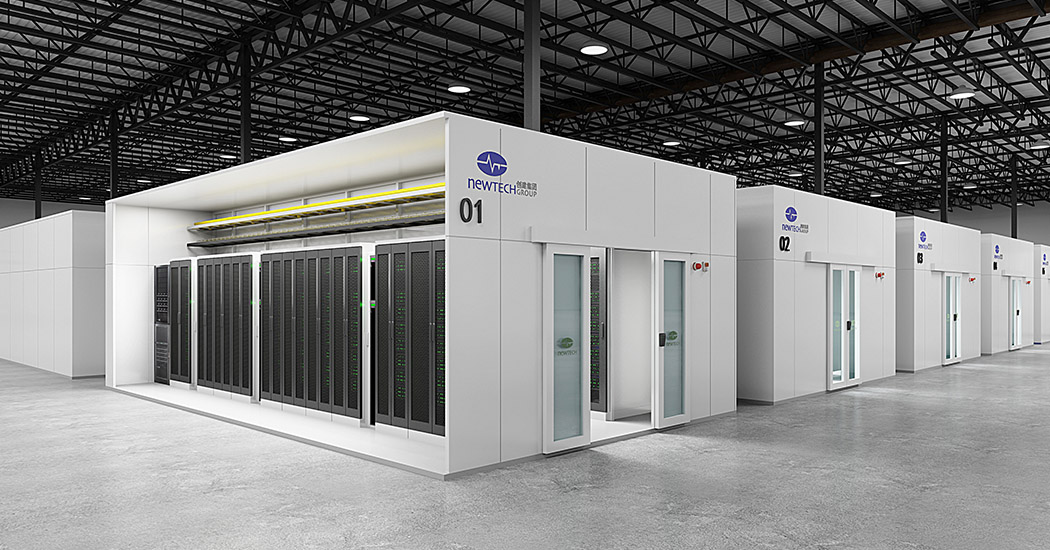

On Demand Usage Model provides a flexible kick start on modular data center
Direct connectivity with prominent cloud providers for Cloud Exchange
KEY FEATURES
KEY FEATURES
-
ISO
ComplianceISO 20000:2011
I.T. Service Management System
ISO 14001:2004
Environmental Management Systems
ISO 9001:2008
Quality Management Systems
ISO/IEC 27001:2013
Information Security Management Systems
-
Carrier
NeutralProvide you with fast and secure connectivity to the widest choice of carriers (Fixed & Mobile), ISPs, Internet Exchanges and other network service providers in order to build your communication network
-
Asia
InterconnectionAsia
InterconnectionProvide a seamless data platform with our inter-connected and comprehensive data center coverage across Asia Pacific
-
7 x 24
SecurityStrictly execute access control, 7 x 24 on-site monitoring and daily patrol and CCTV surveillance cameras recording
-
Managed

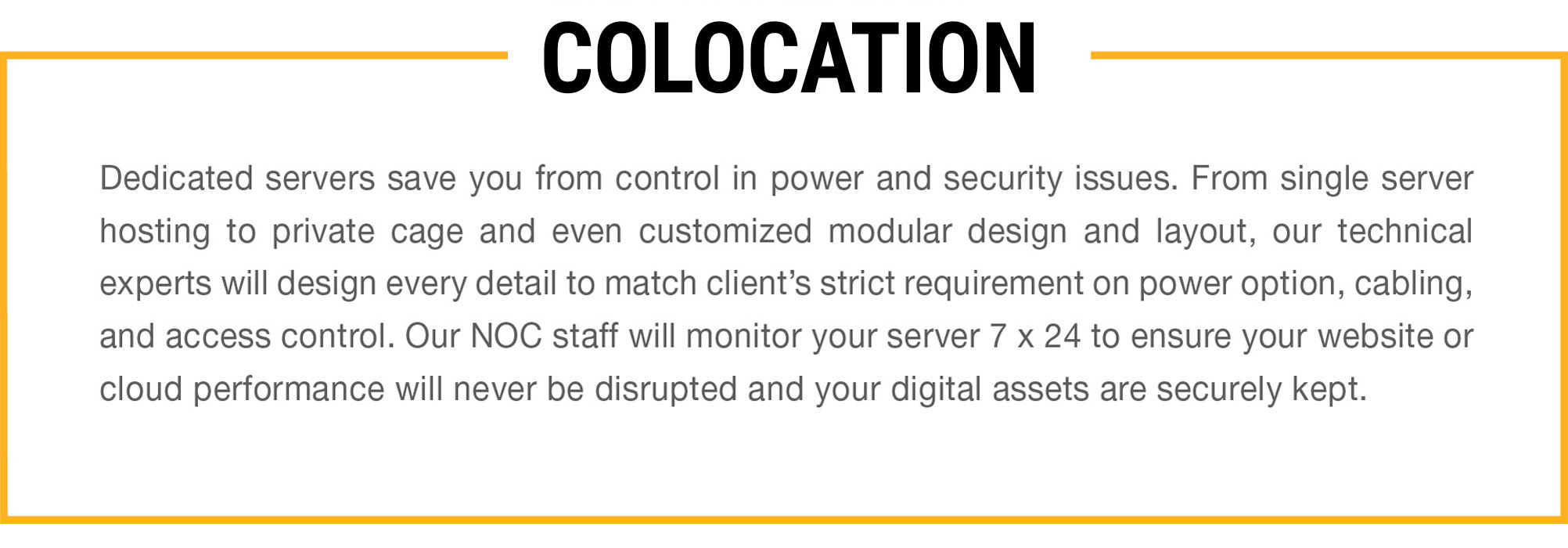

ColocationDedicated managing your data center requirements and even provide options to manage your servers, firewalls and other equipment and help you create greater efficiencies
-
Data Center
RelocationExperienced with all types of moves nationwide – from enterprise-size relocations to those that are smaller in scale in order to minimize the risk, meet the deadlines and reduce the relocation costs
KEY BENEFITS
KEY BENEFITS
Flexibility in scaling up your requirements and technology matching your growing business needs
Excellent connectivity via our fully redundant network connections to various locations in Asia and Mainland China
High degree of control in environmental facilities
KEY FEATURES
KEY FEATURES
-
Smart Hand
SupportProvide remote management, custom installations, and equipment troubleshooting assistance 24 hours a day,7 days a week, 365 days a year
-
Professional
SupportsHighly trained and experienced technicians specializing in data migration, monitoring and security
-
Management &
MonitoringProvide around-the-clock monitoring, regular preventive maintenance, audit, staff training and assessment
-
Business Continuity
Plan with DR and
back up servicesOffer end-to-end methods for protecting against disaster and ensuring that the enterprise continues to function
KEY BENEFITS
KEY BENEFITS
Leave IT complexity with our engineers
Rapid & flexible fulfillment & provisioning
Allow you to focus on your core business
KEY FEATURES
KEY FEATURES
-
Geographical
FlexibilityNumerous strategically located business continuity site available
-
Best-in-class
FacilityPossess the self-owned UPS and generators, ready-to-use service desks, office facilities and equipment with the same security levels as data center
-
One-stop Shop
ServicesProvide a full suite of service ranging from consultation, planning to implementation
-
Monitoring and
ManagementProvide 7 x 24 monitoring and operation supports to guarantee fast data recovery
KEY BENEFITS
KEY BENEFITS
Identify potential gaps in the critical business requirements and IT’s ability
Eradicate business impacts from unexpected operational outages
Improve internal and external communication processes
